Test1: Flow Loop Design

It has been decided to conduct a two-phase flow experiment at the given void fraction and mass flux. During the experiment, there will be a pressure drop in the system due to the liquid single-phase flow and two-phase flow. Estimation of the pressure drop is essential to select right equipment such as pump. To select the pump, liquid flow rate and total head loss are required. In the current simplified example, the procedure for pump selection is reviewed.

Given Key Information

  • Void fraction:α=0.75
  • Mass flux G=1000 kg/(ms)
  • Pressure condition: P=0.1MPa
  • Temperature condition:T=20C
  • Diameter of the vertical pipe test section:Dh=0.05 m
  • Height of the vertical pipe test section:H=5.0 m
  • Diameter of the horizontal water piping system:D=0.10 m
  • Length of the horizontal water piping system:L=10 m
  • Liquid density:ρf=998 kg/m3
  • Gas density:ρg=1.17 kg/m3
  • Liquid dynamic viscosity μf=1.00×103 Pas
  • Gas dynamic viscosity:μg=1.81×105 Pas
  • Gravity acceleration:g=9.8 m/s2
  • Air-water surface tension:σ=0.0727 N/m

Design Procedure

Step

  1. Boundary conditions: α=0.75,G=1000 kg/(m2s),P=1.0 MPa, Fluid system: Steam-water
  2. Identify key flow parameters: jg and jf
  3. Total pressure drop in two-phase flow test section
    • Hydrostatic Pressure Drop: ΔPhydro.
    • Frictional Pressure Drop: ΔPfric,2Φ
  4. Total pressure drop in single-phase flow piping section
    • Frictional Pressure Drop: ΔPfric,1Φ
    • Valve Head Loss: ΔPvalve=1 m
  5. Total pressure drop in flow loop & Find an appropriate pump in terms of pump head and pump flow rate

Assumptions

  • Ignore the pressure loss in two-phase mixing section
  • Ignore the pressure loss at the inlet and outlet sections
  • Steam and water fluid compressibility is negligible.
  • Void fraction change along the flow direction is negligible.

Q1-1

Write down the superficial gas and liquid velocity jg,jf as function of mass flux G , quality x and phase densities ρg,ρf

Answer:

jg=Gxρgjf=G(1x)ρf

Q1-2

Express the void fraction α, as a function of superficial gas jg, velocity mixture volumetric flux j, distribution parameter C0 and drift velocity vgj (drift-flux model)

Answer:

α=jgC0j+vgj

Q1-3

Use results of question 1 and drift-flux model to write the quality x as an explicit function of distribution parameter C0, drift velocity vgj, void fraction α, mass flux G ans phase densities ρg,ρf.

Answer:

x=ρgαG(C0j+vgj)

not right

j=jg+jf=Gxρg+G(1x)ρfx=C0ρf+vgjG1αρgC0ρg+C0ρf

Q1-4

Consider dispersed gas-liquid two-phase flows in a vertical pipe of radius R. Assume that the flow is symmetric to the pipe center line and assume the following distribution profiles for void fraction and mixture volumetric flux along the radial direction:

(1)α(r)=α0(1(rR)n)(2)j(r)=j0(1(rR)m)

where α0 and j0 are peak void fraction and peak mixture volumetric flux at the pipe center, respectively; r and R are coordinates along radial direction and pipe radius, respectively. (1) Calculate α and j by integrating Eqs. (1) and (2) over the flow area. (2) Calculate C0 through its definition.

C0αjαj.

(3) Calculate the distribution parameter using m=n=4.

Answer:

  1. Here
α=1AAα(r) dA=1πR20Rα(r) d(πr2)=2R2α00R(rrn+1Rn) dr=2R2α0(R22R2n+2)=nα0n+2.j=1AAj(r) dA=1πR20Rj(r) d(πr2)=2R2j00R(rrm+1Rm) dr=2R2j0(R22R2(m+2))=mj0m+2.
α=1AAα(r) dA=1πR202π0Rα(r)r dr dθ=nα0n+2.j=1AAj(r) dA=1πR202π0Rj(r)r dr dθ=mj0m+2.
  1. Here:
C0αjαj=1αjAAα(r)j(r) d(πr2)
C0αjαj=1αjAAα(r)j(r) dA=1αjA02π0Rα(r)j(r)r dr dθ=2α0j0αjR20R(rrn+1Rn)(1rmRm) dr=2α0j0αjR20Rrrn+1Rnrm+1Rm+rm+1+nRn+m dr=2α0j0αjR2(R22R2n+2R2m+2+R2m+n+2)=2α0j0αj(121n+21m+2+1m+n+2)=2(m+2)(n+2)mn(121n+21m+2+1m+n+2)=m+n+4m+n+2
  1. Thus
m=n=4C0=1.2

Q1-5

Calculate the chum drift velocity value given by

vgj=2(Δρgσρf2)0.25.

at the atmospheric flow condition. Fluid properties at the atmospheric condition: air and water densities are 1.17 kg/m3 and 998 kg/m3, and the surface tension and gravity acceleration are 0.0727 N/m and 9.8 m/s2.

Answer:

vgj=2(Δρgσρf2)0.250.231 m/s.

Q1-6

Calculate the quality for air water flow at void fraction of 0.75(α=0.75) atmospheric condition. Mass flux is 1000 kg/(m2s). Use the values of drift velocity and distribution parameter in Questions 4 and 5. Fluid properties at the atmospheric condition: air and water densities are 1.17 kg/m3 and 998 kg/m3. Use the following equation.

x=C0ρf+(vgi)G1αρgC0ρg+C0ρf

Answer:

x=C0ρf+vgjG1αρgC0ρg+C0ρf0.0124

Q1-7

Use the calculated quality x=0.0124 to obtain gas and liquid superficial velocity at mass flux of 1000 kg/(m2s). The equations on question1 can be used.

Answer:

jg=Gxρg10.6 m/sjf=G(1x)ρf0.990 m/s.

Q1-8

two-phase flow experiment

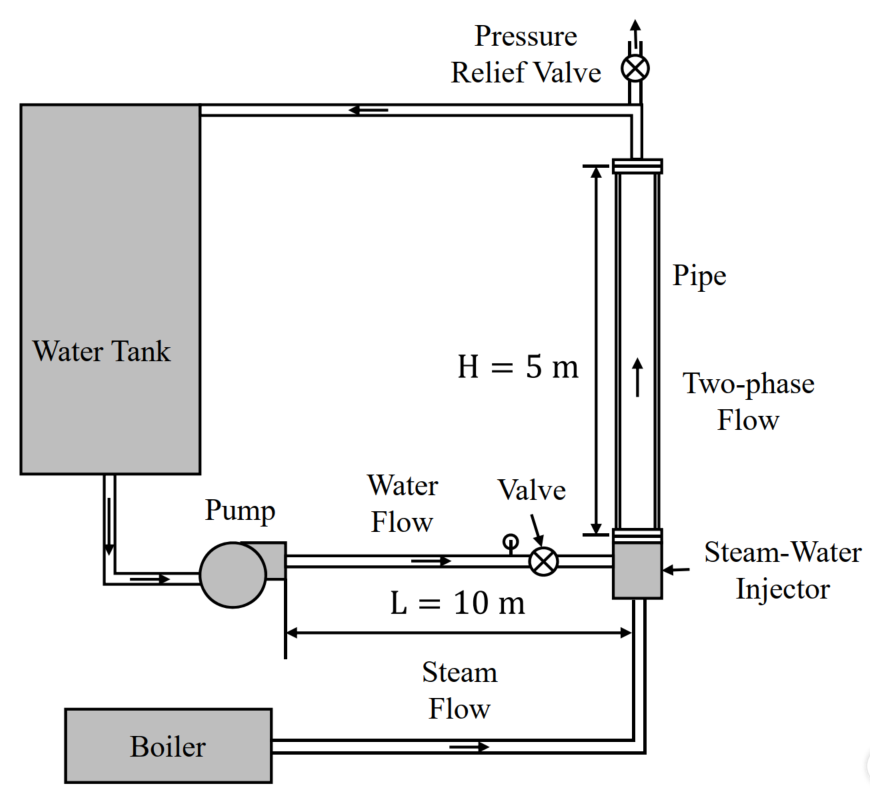

The figure shows the flow loop for the two-phase flow experiment in pipes. Water is driven by a pump and air is driven by an air compressor. They are mixed in the air-water injector, and then injected into the vertical pipe test section.

Assume that two phases flow in the vertical pipe with a diameter (Dh) of 0.05 m at mass flux (G) of 1000 kg/( m2s) and void fraction (α) of 0.75 at the atmospheric condition. Calculate the hydrostatic pressure gradient. If the total height of the pipe section (H) is 5 m , then what is the hydrostatic pressure loss? For simplicity, assume that the air and water fluid compressibility is negligible at the flow condition.

Assume that the void fraction change along the flow direction is negligible.

Fluid properties are given by:

ρf=998 kg/m3,ρg=1.17 kg/m3μf=1×103 Pa s,μg=1.81×105 Pa sg=9.8 m/s2

Answer: The two-phase hydrostatic pressure gradient is given by:

(dPdx)hydro=ρmg=[αρg+(1α)ρf]g.

If the pipe height is 5 m, then:

ΔPhyd=(dPdx)hydroH=ρmgH=[αρg+(1α)ρf]gH12268 Pa.

Q1-9

Following Question 4, calculate the two-phase frictional pressure gradient using the Lockhart-Martinelli method. What is the two-phase frictional pressure loss in the vertical pipe if the pipe length is 5 m ? The following friction factors can be used:

  • Laminar flow:
ffric =64Re.
  • Turbulent flow:
ffric =0.316Re0.25

Two-phase multiplier is given by:

Φf2=1+CX+1X2.

where

LiquidGasC
Turbulent (Ref>2000)Turbulent (Reg>2000)20
Laminar (Ref<1000)Turbulent (Reg>2000)12
Turbulent (Ref>2000)Laminar (Reg<1000)10
Laminar (Ref<1000)Laminar (Reg<1000)5

The answer should be given using Pa.

Answer: The relevant formulas:

(dPdz)fric,2Φ=Φf2(dPdz)fric,f, where (dPdz)fric,f=fDρfjf22X=(dPdz)fric,f(dPdz)fric,g(Lockhart-Martinelli coefficient)

The reynolds number about the liquid and gas are calculated by:

Ref=ρfjfDhμf4.94×104Reg=ρgjgDhμg3.44×104

Both gas and liquid flows are turbulent. Thus, liquid and gas friction factors are calculated by:

ffric,f=0.316Ref0.250.0212ffric,g=0.316Reg0.250.0232

Then, liuquid and gas pressure gradients are calculated by:

(dPdz)fric,f=ffric,fDhρfjf22207 Pa/m(dPdz)fric,g=ffric,gDhρgjg2230.7 Pa/m.

Then, the Lockhart-Martinelli coefficient is given by:

X=(dPdz)fric,f(dPdz)fric,g2.60.

C=20 for both gas and liquid are turbulent. The two-phase multiplier is calculated by:

Φf2=1+CX+1X28.85.

Eventually, we have

(dPdz)fric,2Φ=Φf2(dPdz)fric,f1834 Pa/mΔPfric,2Φ=(dPdz)fric,2ΦH9168 Pa.

Q1-10

Assume that pipes for transporting water has the diameter (D) of 0.1 m. Calculate the liquid velocity in the water pipe if the liquid compressibility is negligible. What is the frictional pressure gradient in water pipe? If the water pipe has the length of 10 m. what is the frictional pressure loss of water? The answer should be given using Pa.

Answer:

According to Question 7, the liquid velocity in the pipe test section is:

jf0.990 m/s.

Then, the liquid volumetric flow rate is:

Qf=jfπDh240.990×π4×0.052=0.00194 m3/s.

Then, the liquid velocity in the water pipe is:

jf,1Φ=4QfπD24×0.00194π×0.12=0.247 m/s.

Then, the liquid single-phase Reynolds number is:

Ref,1Φ=ρfjf,1ΦDμf998×0.247×0.11×10324689.

The liquid single-phase flow is turbulent. Thus, the single-phase friction factor is:

ffric,1Φ=0.316Ref,1Φ0.250.316246890.25=0.0252

Then, the liquid single-phase frictional pressure gradient is:

(dpdx)fric,1Φ=ffric,1ΦDρfjf,1Φ220.0252×998×0.24720.1×27.70 Pa/m

Then, the liquid single-phase frictional pressure loss is:

ΔPfric ,1Φ=(dpdx)fric,1ΦL7.70×1077.0 Pa.

Q1-11

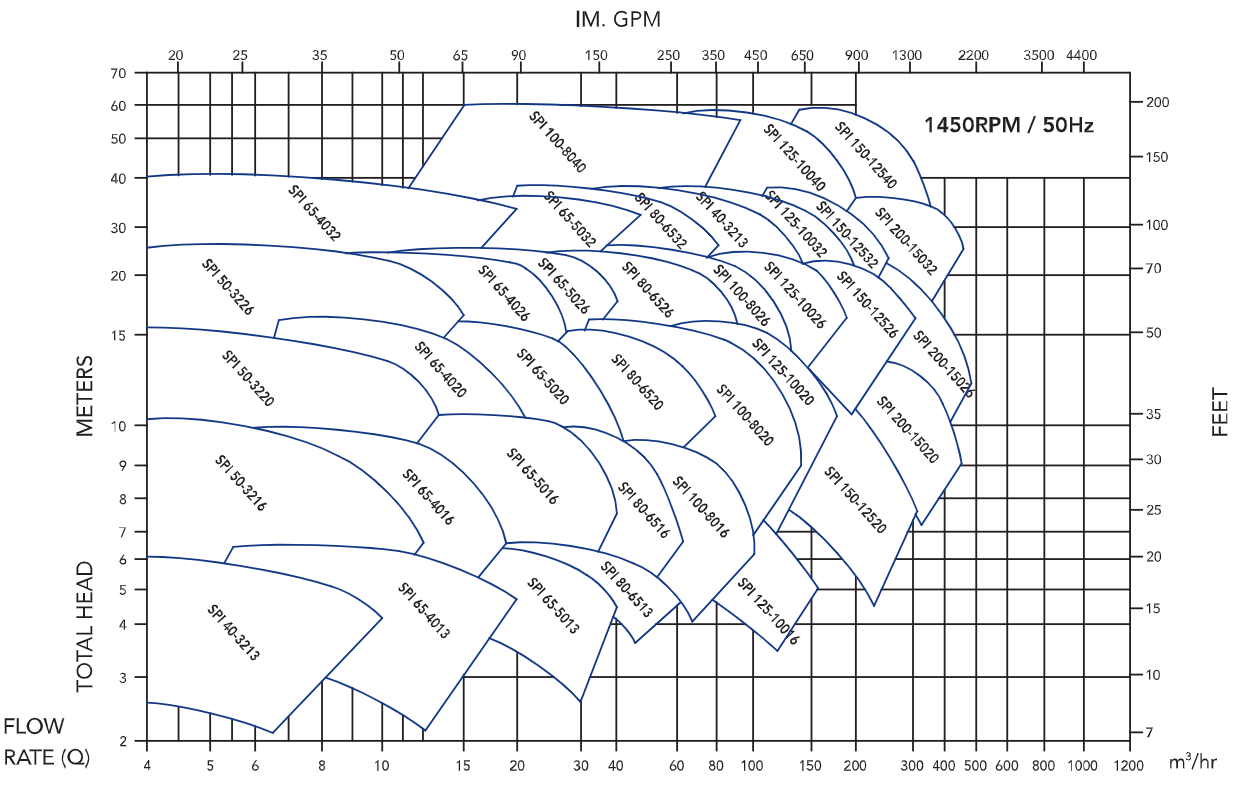

How to pick pump > https://sppump.com/files/Superpower_In-Line_Pump_SPI_Series_.pdf#page=4.00

Assume that the total pressure loss from pump to the top of the test section consists of a pressure loss due to the horizontal single-phase liquid flow and a pressure loss due to the upward two-phase flow in the vertical test section. Use the values calculated in Questions 4 to 6 to obtain a total pressure loss. Then use the below chart to select a suitable pump. Hint: For pump selection, it is preferable to multiply the total estimated pressure loss by a factor 1.2 can be used as a typical factor. The answer should be given using Pa.

Answer:

The total pressure loss is equal to:

ΔPtotal=ΔPfric,1Φ+ΔPfric,2Φ+ΔPhydro77.0+9168+1226821514 Pa

Required head loss is equal to:

ΔPpump=1.2×ΔPtotal25816 Pa2.64 m

pressure is converted to head (水头, height of liquid column in meters) using the formula H=ΔP/ρfg.

Required liquid flow rate is equal to:

Qf=0.00194 m3 s=6.99m3hr

Thus, the SPI 40-3213 is selected.

Test2: heat transfer

Liquid water with the mass flux (G) of 1000 kg/m2/s is injected into a uniformly heated vertical pipe at pressure ( P ) condition of 7.0 MPa and inlet temperature ( T ) of 250C. The pipe has the diameter (Dh) of 0.06 m and height of 10 m . It is heated by the heat source through the outside wall with a heat flux (qw) of 5×105 W/m2.

  • Mass flux: G=1000 kg(m2 s)
  • Pressure condition: P=7.0 MPa
  • Inlet temperature condition: Tin=250C
  • Saturation temperature: Tsat=286C
  • Diameter of the vertical pipe test section: Dh=0.06 m
  • Height of the vertical pipe test section H=10 m
  • Gravity acceleration: g=9.8 m/s2

Enthalpy of liquid water and steam:

  • liquid enthalpy at inlet: hin =1086 kJ/kg
  • Saturated liquid enthalpy: hsat,f=1263 kJ/kg
  • Saturated gas enthalpy: hsat,g=2774 kJ/kg
  • Latent heat: hfg=1511 kJ/kg

Properties of saturatod water and steam:

  • Saturated liquid density: ρf=741 kg/m3
  • Saturated liquid dynamic viscosity : μf=9.16×105 Pas
  • Saturated liquad thermal conductivity: kf=0.570 W/m/K
  • Saturated liquid isobaric heat capacity: Cpf=5.38 kJ/kg/K
  • Saturated gas density: ρg=36.5 kg/m3.
  • Saturated gas dynamic viscosity: μg=1.90×105 Pa
  • Steam-water surface tension σ=0.0178 N/m
  • Steel-water contact angles ϕs=38

Typical boiling regime analysis

Step

  1. Flow boundary conditions: liquid water injected, G=1000 kg/(m2s),P=7.0 MPa. Thermal boundary conditions: fixed heat flux or fixed wall temperature. Fluid system: steam-water.
  2. Single-phase convection regime
  3. Subcooled nucleate boiling regime
    • Onset of nucleate boiling (ONB)
    • Onset of significant void (OSV)
  4. Saturated boiling regime
    • Convective boiling heat transfer
    • Nucleate boiling heat transfer
  5. Critical heat flux

Assumptions

  • Ignore the pressure loss in two-phase mixing section
  • Air and water fluid compressibility is negligible.
  • Water properties change with temperature is negligible.

Q2-1

Assume that water properties do not vary significantly in single-phase flow section,what are the Reynolds number and Prandtl number for liquid water using the average properties of under-saturated water?Calculate the Nussel nermber and liquid convective heat transfer coefficient using the Dittus-Boelet equation

Nuf=0.023Ref0.8Prf0.4Ref=GDhμfPrf=CpfμfkfNuf=hfDhkf

Answer: Liquid Reynolds number

Ref=GDhμf=1000×0.069.16×1056.55×105.

Liquid Prandtl number

Prf=Cpfμfkf=5.38×103×9.16×1050.5700.865.

Liquid Nusselt number

Nuf=0.023Ref0.8Prf0.4976.

Liquid convective heat transfer coefficient

hf=NufkfDh=9272 W/m2/K

Q2-2

What is the temperature difference between the wall temperature and mean bulk liquid temperature (wall super heat [C])?

qw=hΔT.

Answer: The temperature difference between the wall and the fluid is calculated by the heat flux:

q=hfΔTΔT=qwhf5×1059272C53.9C.

Q2-3

Determine the temperature for the onset of nucleate boiling, TONB, using Basu et al. (2004) correlation

ΔTONB=2F(ϕS)(σTsatqwρghfgkf)0.5

where

F(ϕs)=1exp[(πϕs180)30.5(πϕs180)]ϕs=38.

Answer:

Contact angle, ϕs=38, thus:

F(ϕS=38)=1exp[(π×38180)30.5(π×38180)]0.464.

Then:

ΔTONB=2F(ϕS)(σTsatqwρghfgkf)0.520.464(0.0178×559.15×5×10536.5×1511000×0.570)0.51.21C

Therefore

TONB=ΔTONB+Tsat1.21+559 K=560 K287C

Q2-4

Calculate the temperature and length for the onset of significant void, TONB

Pe=GDhCpfkfFor Pe<7×104:Tsat TD=0.0022(qwDhRf)For Pe>7×104:Tsat TD=154(qwGCpf)ZD=πDh24GCpf(TDTin)πDhq.

Answer:

Pe=1000×0.06×53800.5705.66×105>7×104:TsatTD=154(5×1051000×5380)14.3C.

Hence:

TDTsat14.355914.3545 K272C.

Using energy balance equation:

ZD=πDh24GCpf(TDTin)πDhq0.06×1000×5380×(545523)4×5×1053.50 m.

Q2-5

In another scenario, assume that the heat flux is unknown and the wall temperature is fixed at 326C. Chen's correlation is used to calculate two-phase heat transfer coefficient and heat flux at x=0.1. Saturation pressure at 326C is 12.2 MPa .

q=h2Φ(TwTsat),h2Φ=hNB+hchc=0.023Ref0.8Prf0.4kfDhFhNB=S×0.00122[(k0.79Cp0.45ρ0.49)fσ0.5μf0.29hfg0.24ρg0.24]ΔTsat0.24ΔP0.75

where

S=11+2.53×106Re1.17Re=RefF1.25Ref=G(1x)DhμfF={1for 1Xtt<0.12.35(0.213+1Xtt)0.736for 1Xtt>0.1Xtt=(1xx)0.9(ρgρf)0.5(μfμg)0.1ΔTsat=TwTsatΔP=P(Tw)P(Tsat)

The answer of hNB should be given in W/(m2 K).

Answer:

Ref=G(1x)Dhμf=1000(10.1)×0.069.16×105=5.90×105Prf=μfCpfkf=9.16×105×53800.570=0.865Xtt=(1xx)0.9(ρgρf)0.5(μfμg)0.1=(10.10.1)0.9(36.5741)0.5(9.16×1051.9×105)0.11.88.

Since 1Xtt0.533>0.1,

F=2.35(0.213+1Xtt)0.7361.89hc=0.023Ref0.8Prf0.4kfDhF0.023(5.90×105)0.8(0.865)0.4(0.5700.06)1.891.61×104 W/(m2 K)

On the other hand:

ΔTsat=TwTsat=(326286)C=40CΔP=P(Tw)P(Tsat)=(12.27) MPa=5.2×106 PaRe=RefF1.251.31×106S=11+2.53×106Re1.170.0268hNB=S×0.00122[(k0.79Cp0.45ρ0.49)fσ0.5μf0.29hfg0.24ρg0.24]ΔTsat0.24ΔP0.751.04×104 W/(m2K).

Thus,

h2Φ=hNB+hc2.65×104 W/(m2K)q=h2Φ(TwTsat)1.06×106 W/m2.

Q2-6

Assume that the liquid velocity is zero (pool conditions), calculate the critical heat flux using Zuber's correlation:

qcr=ρgjghfg

where the vapor velocity leading to the onset of fluidization jg is given by:

jg=0.13[σ(ρfρg)gρg2]1/4

The answer of qcr should be given in W/m2.

Answer:

jg=0.13[σ(ρfρg)gρg2]1/40.0176 m/sqcr=ρgjghfg3.95×106 W/m2.
