2 External Flow

Objectives

• Have an understanding of the various physical phenomena associated with external flow such as drag, friction and pressure drag, drag reduction, and lift
• Calculate the drag force associated with flow over common geometries
• Understand the effects of flow regime on the drag associated with flow over cylinders and spheres
• Understand the fundamentals of flow over airfoils, and calculate the drag and lift forces acting on airfoils

Introduction

Definition: External Flow

A fluid moving over a stationary body (such as the wind blowing over a building), and a body moving through a quiescent fluid (such as a car moving through air) are referred to as flow over bodies or external flow.

(relatively movement)

Quiz[core]: The velocity of the fluid approaching a body is called

Free-stream velocity

Drag and lift

Drag

Definition: drag

Drag: The force a flowing fluid exerts on a body in the flow direction.

• The drag force can be measured directly by simply attaching the body subjected to fluid flow to a calibrated spring and measuring the displacement in the flow direction.
• Drag is usually an undesirable effect, like friction, and we do our best to minimize it.
• But in some cases drag produces a very beneficial effect and we try to maximize it (e.g., automobile brakes).

Drag force:

• skin friction drag
• pressure drag (form drag)

Different body:

• Streamlined body: If a conscious effort is made to align its shape with the anticipated streamlines in the flow.
  • Streamlined bodies such as race cars and airplanes appear to be contoured and sleek.
• Bluff or blunt body: If a body (such as a building) tends to block the flow.

Usually it is much easier to force a streamlined body through a fluid.

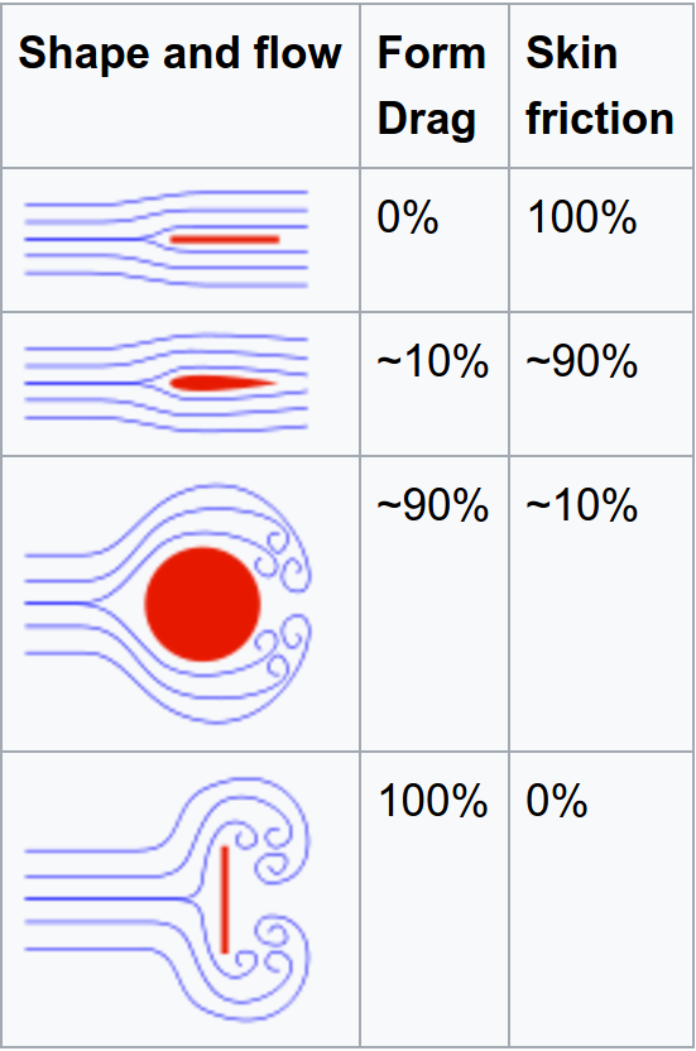

Friction and Pressure Drag

• The drag force is the net force exerted by a fluid on a body in the direction of flow due to the combined effects of wall shear and pressure forces.
  • The part of drag that is due directly to wall shear stress is called the skin friction drag (or just friction drag) since it is caused by frictional effects,
  • The part that is due directly to pressure is called the pressure drag (also called the form drag because of its strong dependence on the form or shape of the body).

$$\begin{array}{c}{C}_{D,\mathrm{friction}}=\frac{F_{D,\mathrm{friction}}}{\frac{1}{2}\rho V^{2}A},C_{D,\mathrm{pressure}}=\frac{F_{D,\mathrm{pressure}}}{\frac{1}{2}\rho V^{2}A}\\ C_D=C_{D,\mathrm{friction}}+C_{D,\mathrm{pressure}},F_D=F_{D,\mathrm{friction}}+F_{D,\mathrm{pressure}}.\end{array}$$

For friction drag:

• The friction drag is the component of the wall shear force in the direction of flow, and thus it depends on the orientation of the body as well as the magnitude of the wall shear stress.
• For parallel flow over a flat surface, the drag coefficient is equal to the friction drag coefficient.
• Friction drag is a strong function of viscosity, and increases with increasing viscosity

Some examples:

• Flow over a Flat Plane Parallel to the Flow: Friction Drag
  • laminar or turbulent, thus several different coefficients
  $$F_D={\int }_{\text{plate surface}}{\tau }_w\mathrm{d}A$$
• Flow over a Flat Plane Perpendicular to the Flow: Pressure Drag
  • usually obtain coefficient empirically
  $$F_D={\int }_{\mathrm{surface}}p\mathrm{d}A$$

Drag Coefficient of Common Geometries

The drag and lift forces depend on the density of the fluid, the upstream velocity, and the size, shape, and orientation of the body.

It is more convenient to work with appropriate dimensionless numbers that represent the drag and lift characteristics of the body.

$$\begin{array}{c}{C}_D=\frac{F_D}{\frac{1}{2}\rho V^{2}A}=\frac{1}{L}{\int }_0^L{C}_{D,x}\mathrm{d}x\text{Drag Coefficient}\\ C_L=\frac{F_L}{\frac{1}{2}\rho V^{2}A}=\frac{1}{L}{\int }_0^L{C}_{L,x}\mathrm{d}x\text{Lift Coefficient}\end{array}$$

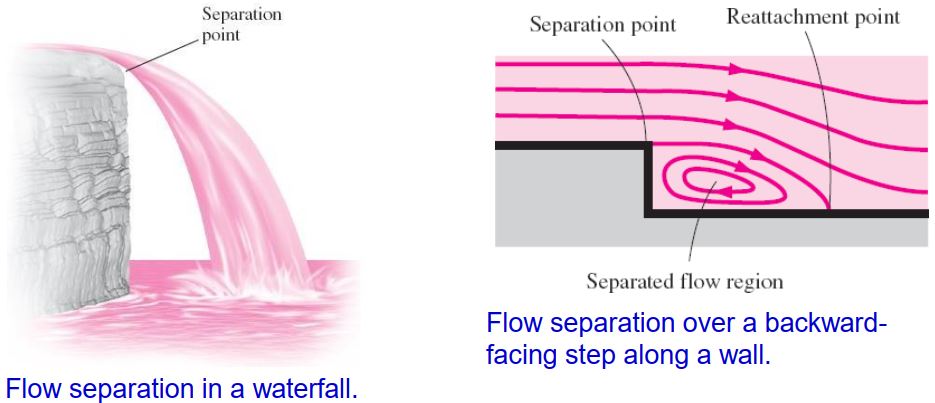

Definition: Flow Separation

At sufficiently high velocities, the fluid stream detaches itself from the surface of the body.

The location of the separation point depends on several factors such as the Reynolds number, the surface roughness, and the level of fluctuations in the free stream, and it is usually difficult to predict exactly where separation will occur.

Definition: Separation Region

When a fluid separates from a body, it forms a separated region between the body and the fluid stream.

• a low-pressure region behind the body where recirculating and backflows occur
• The larger the separated region, the larger the pressure drag
• The effects of flow separation are felt far downstream in the form of reduced velocity (relative to the upstream velocity)
• Wake: The region of flow trailing the body where the effects of the body on velocity are felt. (separated region?)
• Viscous and rotational effects are the most significant in the boundary layer, the separated region, and the wake.

Some examples:

Drag and Reynolds number(Core):

• Low Re: $C_D=\mathrm{constant}/\mathrm{Re}$
• intermediate Re: $f(\mathrm{Re})$
• High Re: constant

Quiz: At high Reynolds number flow over common geometries, the drag coefficient is a constant (T/F)

True

Quiz: For high Reynolds number flow over common geometries

The drag coefficient is a constant that does not depend on the Reynolds number

Quiz: For high Reynolds number over common geometries

The drag force is proportional to the flow velocity squared, i.e. $V^2$

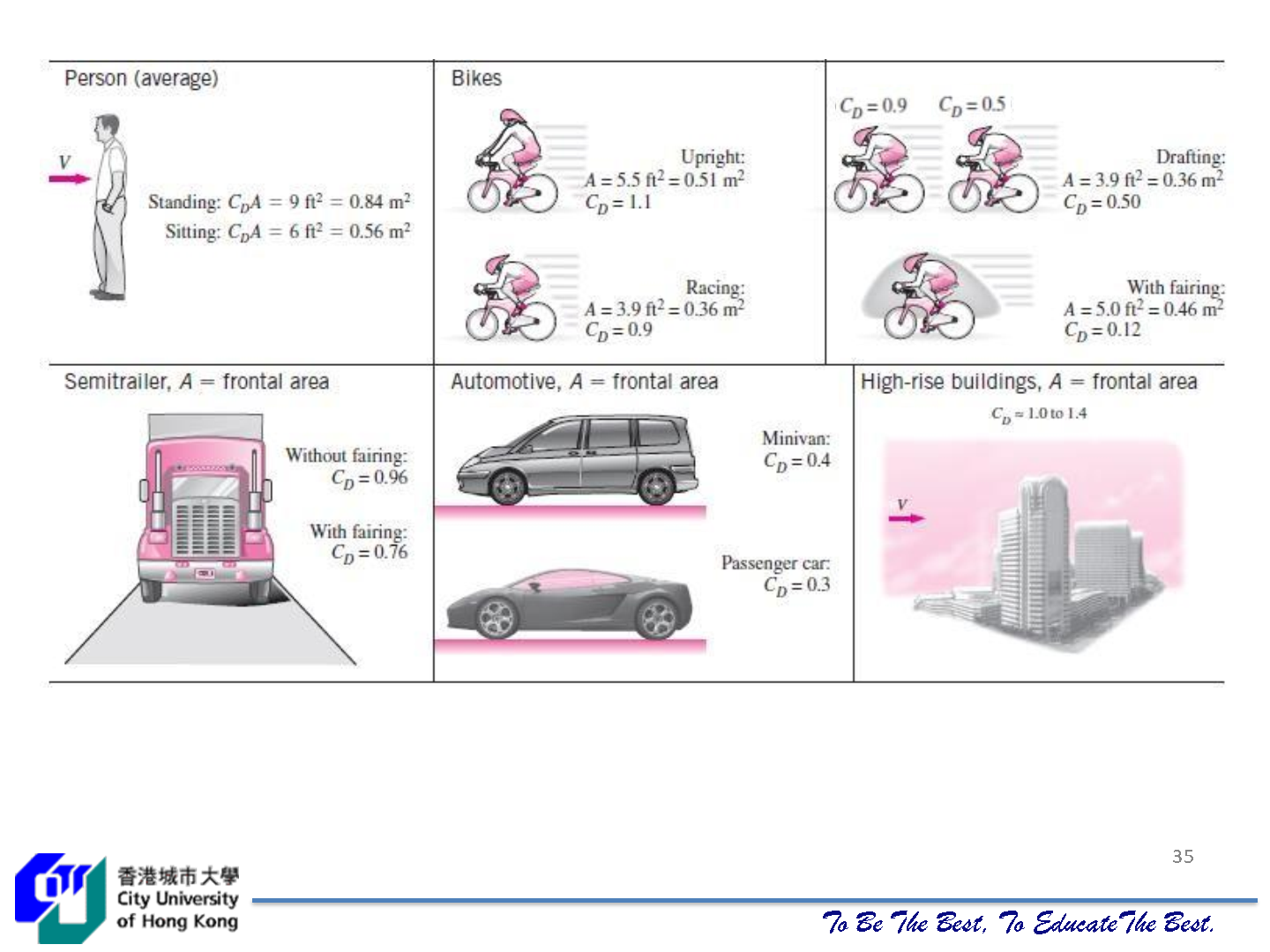

The drag coefficients of vehicles range from about 1.0 for large semitrailers to 0.4 for minivans, 0.3 for passenger cars, and 0.2 for race cars. The theoretical lower limit is about 0.1.

• In general, the more blunt the vehicle, the higher the drag coefficient.
• Installing a fairing reduces the drag coefficient of tractor-trailer rigs by about 20% by making the frontal surface more streamlined.
• Streamlining decreases pressure drag by delaying boundary layer separation and thus reducing the pressure difference between the front and back of the body but increases the friction drag by increasing the surface area. The end result depends on which effect dominates.

Quiz: Drag is caused by two different effects:

Pressure and friction

Lift

Definition: Lift

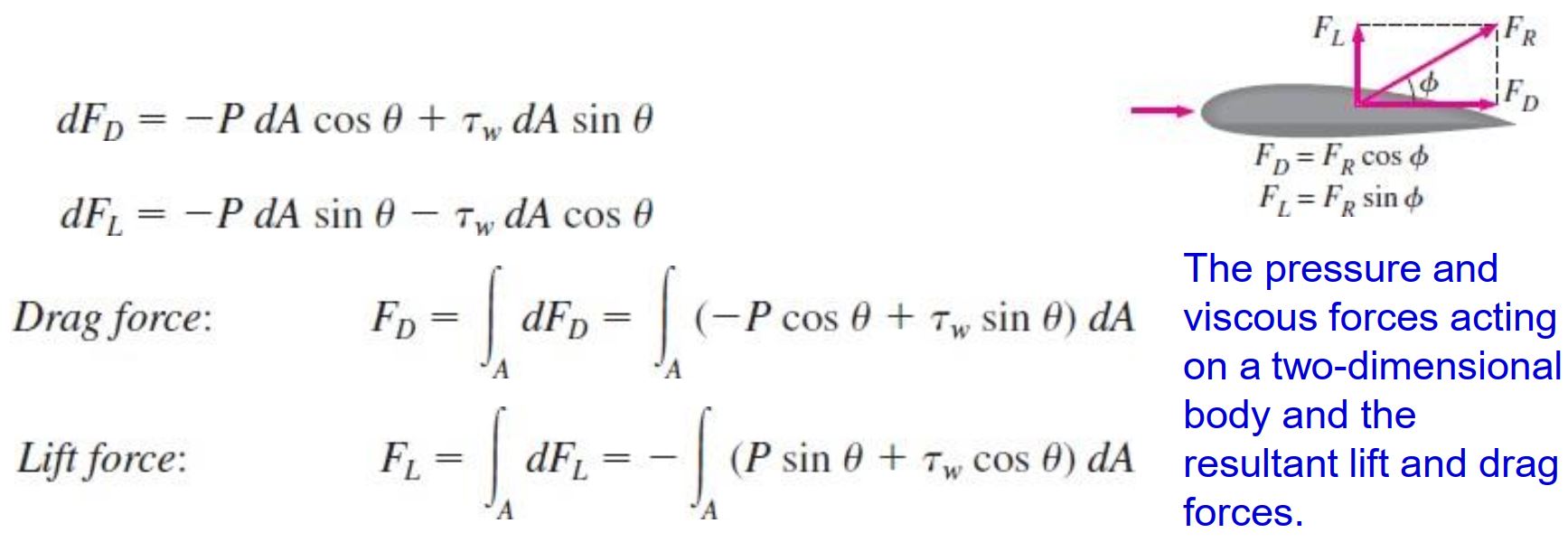

The components of the pressure and wall shear forces in the direction normal to the flow tend to move the body in that direction, and their sum is called lift.

• The drag and lift forces depend on the density of the fluid, the upstream velocity, and the size, shape, and orientation of the body.
• It is also more convenient to work with appropriate dimensionless numbers that represent the drag and lift characteristics of the body. These numbers are the drag coefficient $C_D$, and the lift coefficient $C_L$.
• In lift and drag calculations of some thin bodies, such as airfoils, $A$ is taken to be the platform area, which is the area seen by a person looking at the body from above in a direction normal to the body.

Quiz: The _____ force is the force a flowing fluid exerts on a body in the flow direction

Drag

Quiz: The _____ force is the force a flowing fluid exerts on a body perpendicular to the flow direction

Lift

Quiz: The drag coefficient is defined in terms of the frontal area for bluff bodies (T/F?)

True (pressure)

Quiz: The drag coefficient is defined in terms of the planform area for slim bodies such as airfoils (T/F?)

True (friction)

Quiz: The friction drag is strong function of viscosity, and increases with increasing viscosity (T/F?)

True

Coefficient

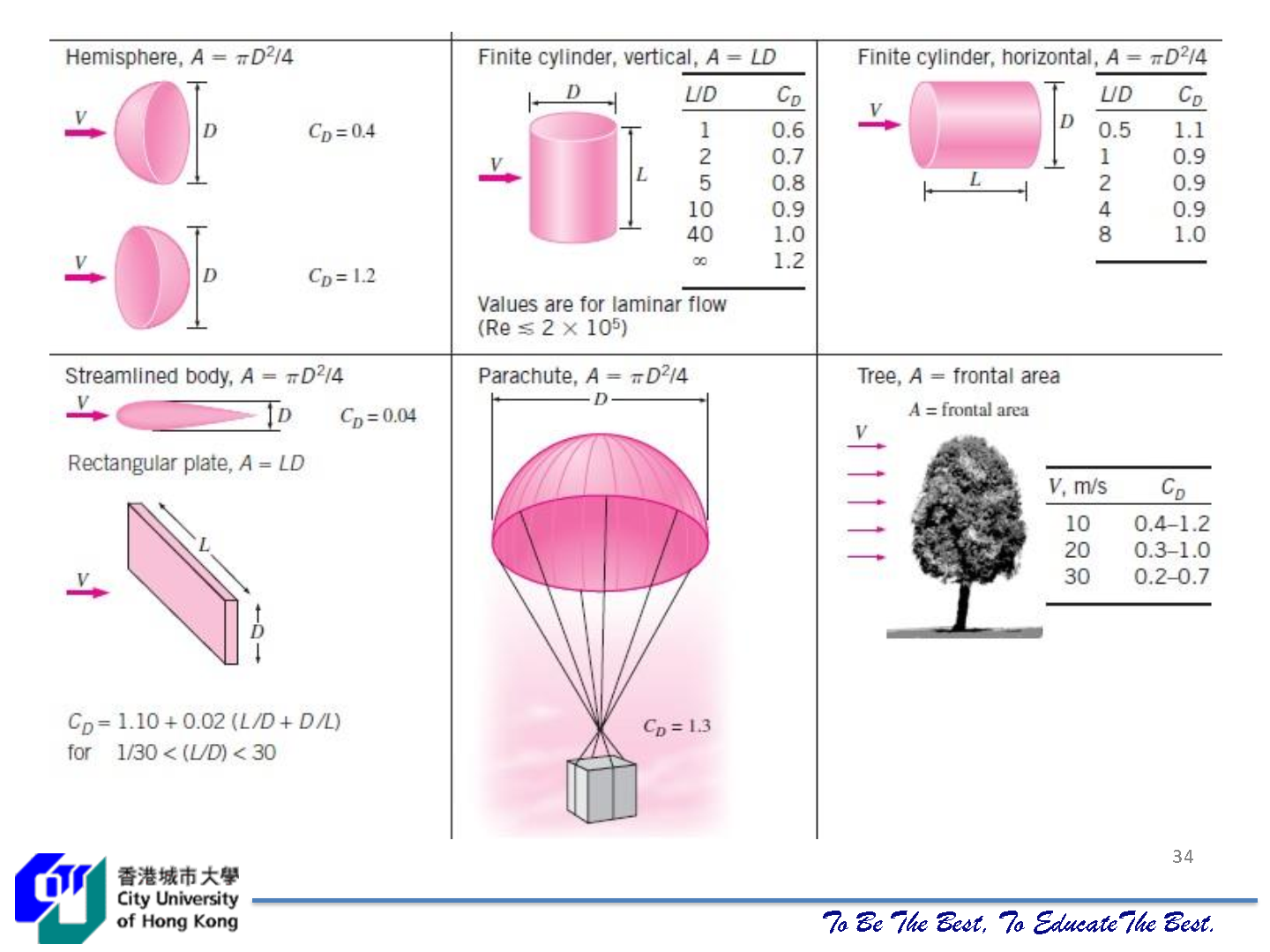

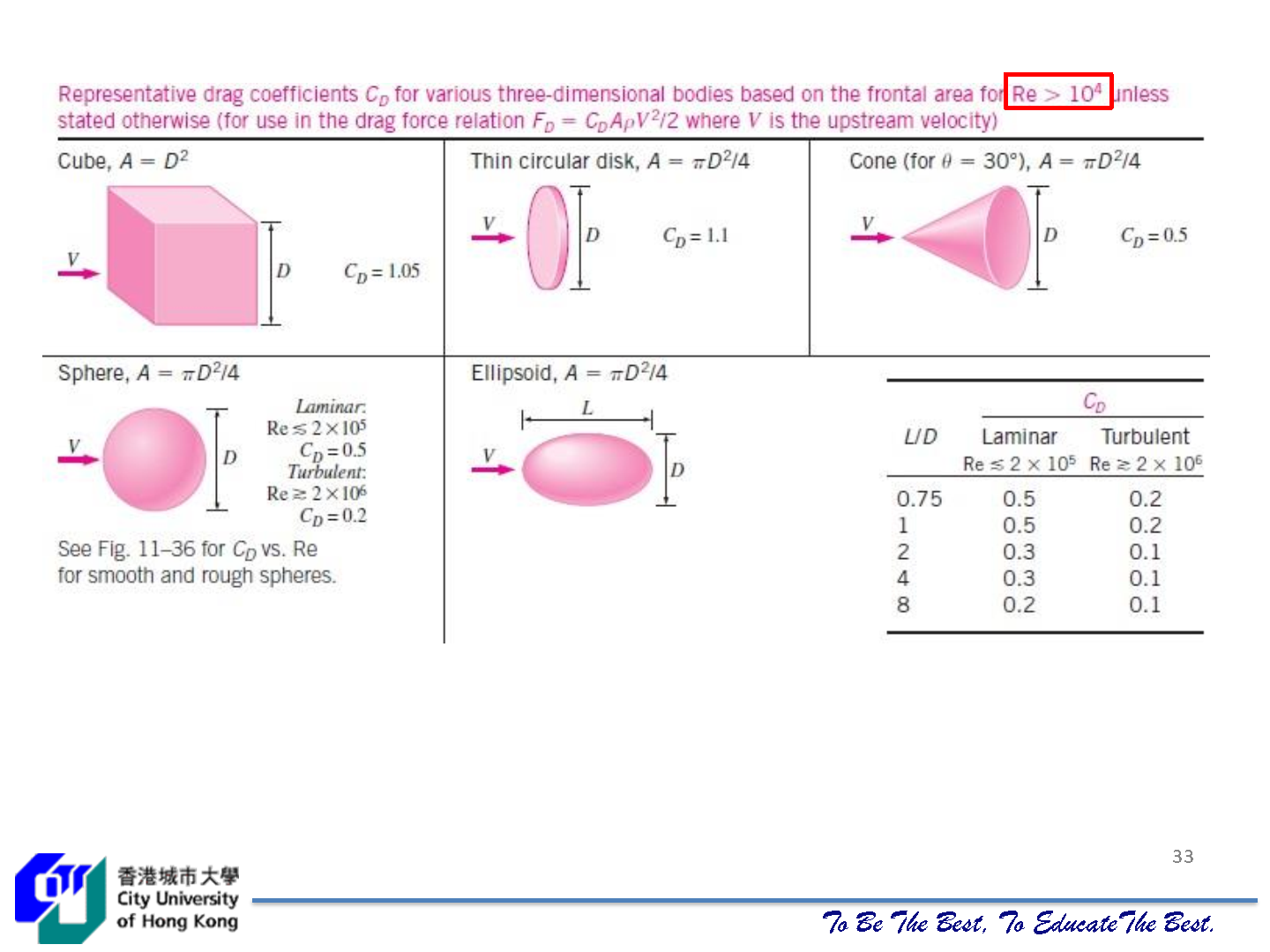

Drag Coefficients of Common Geometries

• Usually the total (friction+pressure) drag coefficient is reported.
• The drag coefficient exhibits different behavior in the low (creeping), moderate (laminar), and high (turbulent) regions of the Reynolds number.

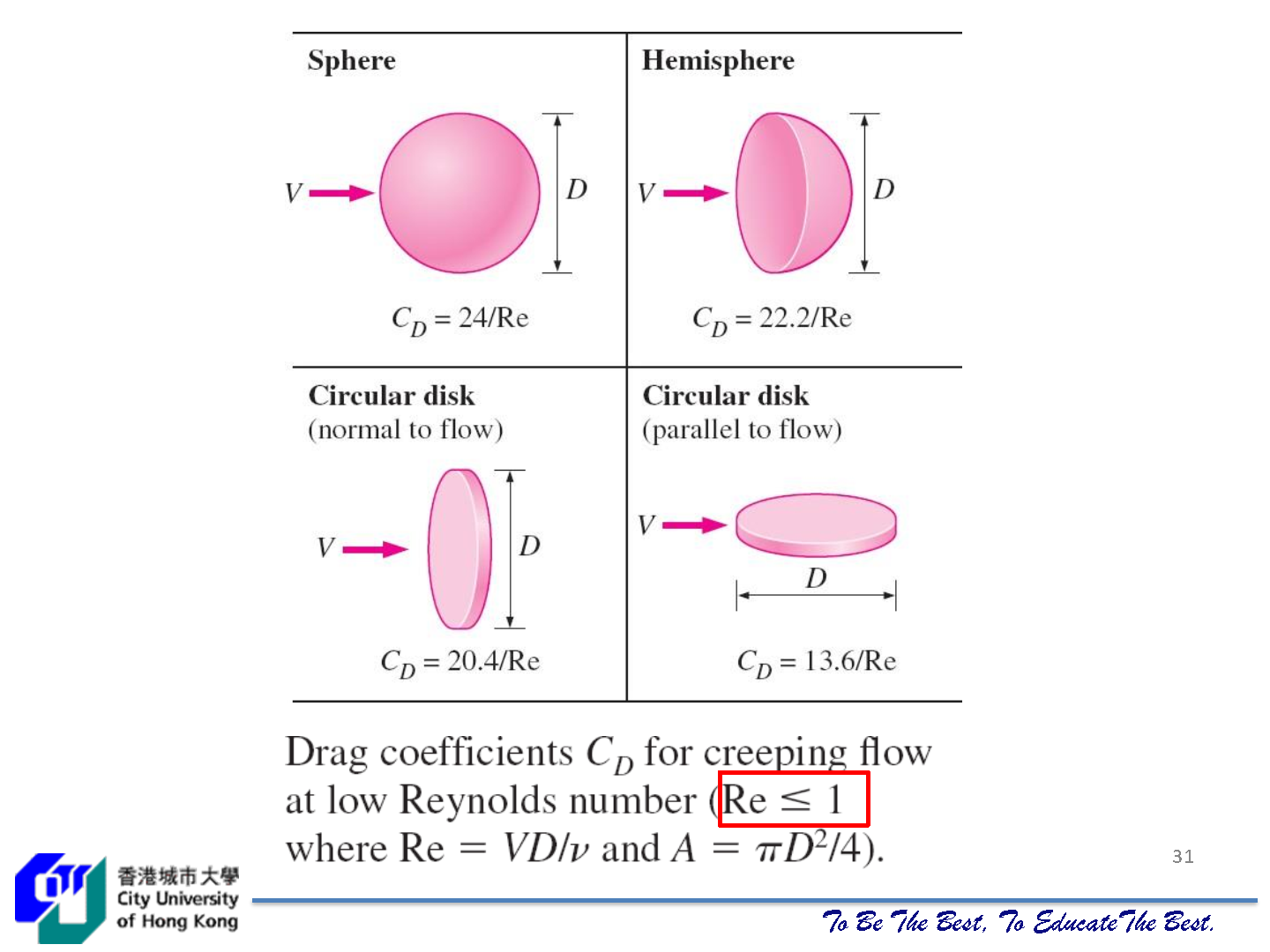

• The inertia effects are negligible in low Reynolds number flows ($\mathrm{Re}<1$), called creeping flows, and the fluid wraps around the body smoothly
  • $C_D=\frac{24}{\mathrm{Re}}(\mathrm{Re}\le 1)$
  • $F_D=C_{D}A\frac{\rho V^2}{2}=\frac{24}{\rho VD/\mu }\frac{\pi D^2}{4}\frac{\rho V^2}{2}=3\pi \mu VD$: Stokes Law, often applicable to dust particles in the air and suspended solid particles in water.

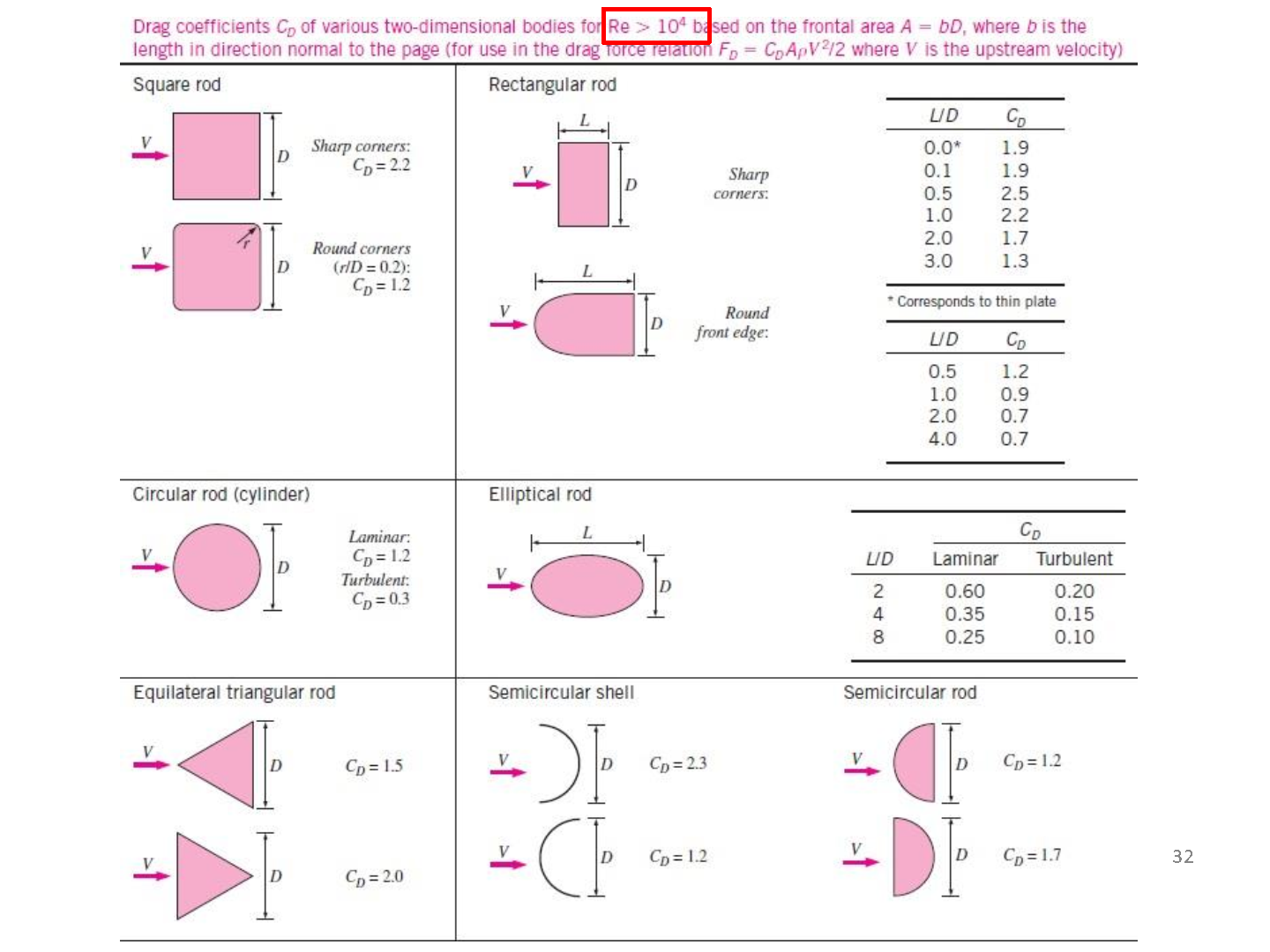

Observations from the drag coefficient tables:

• The orientation of the body relative to the direction of flow has a major influence on the drag coefficient.
• For blunt bodies with sharp corners, such as flow over a rectangular block or a flat plate normal to flow, separation occurs at the edges of the front and back surfaces, with no significant change in the character of flow.
  • Therefore, the drag coefficient of such bodies is nearly independent of the Reynolds number
  • The drag coefficient of a long rectangular rod can be reduced almost by half from 2.2 to 1.2 by rounding the corners.

The aerodynamic drag is negligible at low speeds, but becomes significant at speeds above about 50 km/h.

• At highway speeds, a driver can often save fuel in hot weather by running the air conditioner instead of driving with the windows rolled down.
• The turbulence and additional drag generated by open windows consume more fuel than does the air conditioner.

Quiz: To improve fuel economy of a low-drag automobile, it is better to turn the air-conditioner off and drive with the windows open (T/F?)

False

Quiz: Aerodynamic drag on automobiles is negligible at low speeds (less than 30mph) (T/F?)

True

Quiz[core]: For a car moving on a flat road at high speed (60mph) the power developed by the engine to overcome aerodynamic drag is

Proportional the vehicle speed cubed, ie. $V^3$ [$\mathrm{Power}\propto FV\propto V^3$]

Example: Effect of Frontal Area on Fuel Efficiency of a Car

Two common methods of improving fuel efficiency of a vehicle are:

1. reduce the drag coefficient
2. reduce the frontal area of the vehicle.

Consider a car whose width ($W$) and height ($H$) are $1.85\mathrm{m}$ and $1.70\mathrm{m}$, respectively, with a drag coefficient of $0.30$. Determine the amount of fuel and money saved per year as a result of reducing the car height to $1.55\mathrm{m}$ while keeping its width the same.

Assume the car is driven $18,000\mathrm{km}$ a year at an average speed of $95\mathrm{km}/\mathrm{h}$. Take the density and price of gasoline to be $0.74\mathrm{kg}/\mathrm{L}$ and $\mathrm{\$}0.95/\mathrm{L}$, respectively. Also take the density of air to be $1.20\mathrm{kg}/{\mathrm{m}}^3$, the heating value of gasoline to be $44,000\mathrm{kJ}/\mathrm{kg}$, and the overall efficiency of the car's drive train to be 30 percent.

Analysis:

1. The drag force acting on a body is

$$F_D=C_{D}A\frac{\rho V^2}{2}.$$

where $A$ is the frontal area of the body. So:

$$F_D=0.3(1.85\times 1.70{\mathrm{m}}^2)\frac{(1.20{\mathrm{kg}/\mathrm{m}}^3)(95\mathrm{km}/\mathrm{h}{)}^2}{2}{\left(\frac{1\mathrm{m}/\mathrm{s}}{3.6\mathrm{km}/\mathrm{h}}\right)}^2\left(\frac{1\mathrm{N}}{1\mathrm{kg}\cdot {\mathrm{m}/\mathrm{s}}^2}\right)=394\mathrm{N}.$$

2. Noting that work is force times distance, the amount of work done to overcome this drag force and the required energy input for a distance of $18,000\mathrm{km}$ are

$$\begin{array}{c}\begin{array}{rl}{W}_{\mathrm{drag}}& =F_{D}L\\ & =(394\mathrm{N})(18,000\mathrm{km}/\mathrm{year})\left(\frac{1000\mathrm{m}}{1\mathrm{km}}\right)\left(\frac{1\mathrm{kJ}}{1000\mathrm{N}\cdot \mathrm{m}}\right)=7.092\times {10}^6\mathrm{kJ}/\mathrm{year}\end{array}.\\ E_{\mathrm{in}}=\frac{W_{\mathrm{drag}}}{{\eta }_{\mathrm{car}}}=\frac{7.092\times {10}^6\mathrm{kJ}/\mathrm{year}}{0.30}=2.364\times {10}^7\mathrm{kJ}/\mathrm{year}\end{array}$$

3. The amount of the cost of the fuel that supplies this much energy are:

$$\begin{array}{c}\begin{array}{rl}\text{Amount of fuel}& =\frac{m_{\mathrm{fuel}}}{{\rho }_{\mathrm{fuel}}}=\frac{E_{\mathrm{in}}/HV}{{\rho }_{\mathrm{fuel}}}\\ & =\frac{(2.364\times {10}^7\mathrm{kJ}/\mathrm{year})(44,000\mathrm{kJ}/\mathrm{year})}{0.74\mathrm{kg}/\mathrm{L}}=726\mathrm{L}/\mathrm{year}\end{array}.\\ \begin{array}{rl}\text{Cost}& =\text{(Amount of fuel)(Unit cost)}\\ & =(726\mathrm{L}/\mathrm{year})(\mathrm{\$}0.95/\mathrm{L})=\mathrm{\$}690/\mathrm{year}.\end{array}\end{array}$$

4. Reduction ratio: $0.0882$
5. Amount reduction: $64\mathrm{L}/\mathrm{year}$
6. Cost reduction: $\mathrm{\$}61/\mathrm{year}$

Drawbacks: constant drag coefficient
